Application嚗High switching speed, Large flow
The vacuum is causing performance of equipment downswing,
may use T type anti-vacuum valve to improve.
Special fitting for inlet & outlet |

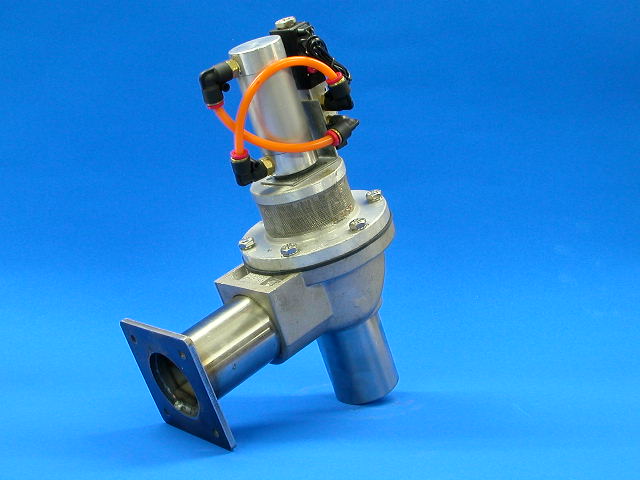

Special fitting for inlet & outlet |

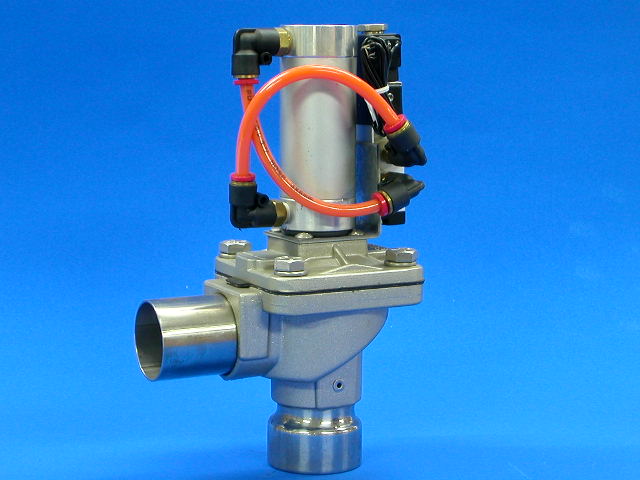

Special fitting for inlet & outlet |

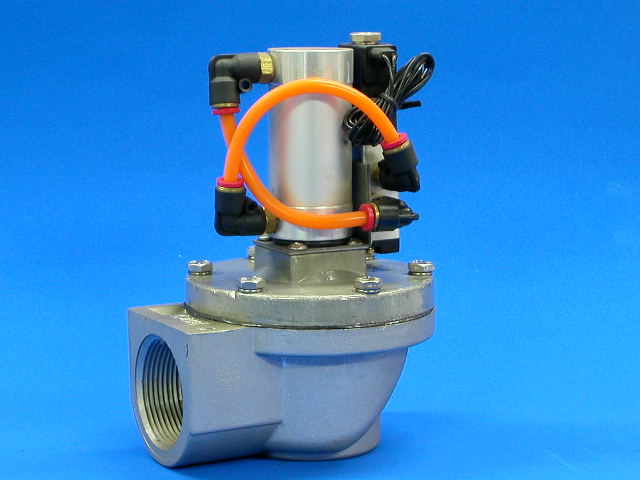

Air valve |

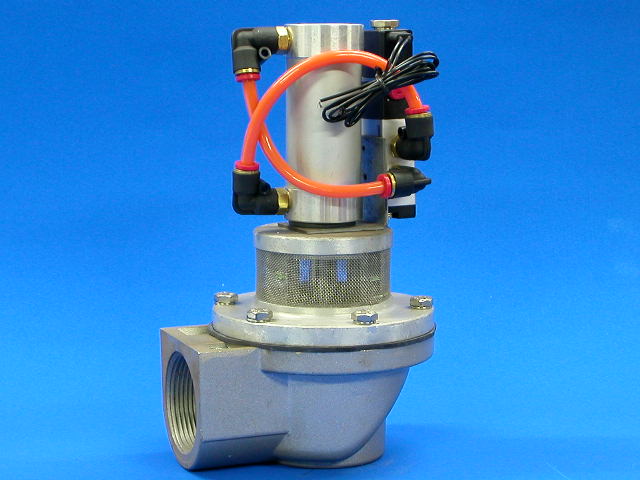

Anti-vacuum valve |

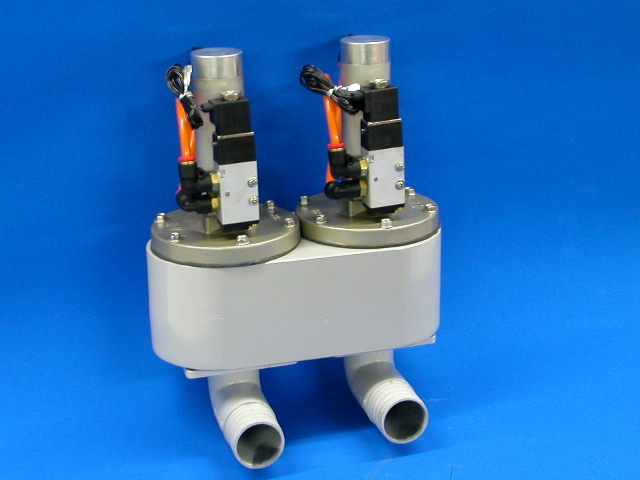

1/2 way air valve |
Ordering Code |
LH |
A |
40 |
N |
AC220V |
Brand |
Inlet type
Outlet type |
Connection Pipe Caliber |
Air valve type |
Voltage |
LI HUI |
A:Inner pitch for inlet & outlet
F: Special fitting for inlet & outlet |
401 1/2
502
652 1/2
803 |
N: Air valve
T: Anti-vaccum valve
Y: 1/2 way air valve |
AC220V
AC110V
DC24V |
| Specification |
Air valveModel |
LHA40N |
LHA50N |
LHA65N |
LHA80N |
Anti-vacuum valveModel |
LHA40T |
LHA50T |
LHA65T |
LHA80T |
1/2 way valveModel |
LHF40Y |
|
|
|
Connection Pipe Caliber |
1 1/2 |
2 |
2 1/2 |
3 |
Orifice Diameter |
42 |
66 |
66 |
130 |
Cv |
43 |
60 |
120 |
130 |
|
