PLC
Filter Bag
Solenoid Valves
Air Valve
Multi Fuction Controller with LED Display
  Expandable

Intelligent Bag type Dust Collector
(Differential Pressure Controller)

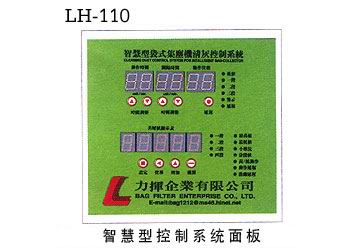

Model

LH-110
Display
LED Displayer
ON Time Range

0.1~9.9 sec

OFF Time Range

0.1~9.9 sec
Voltage
AC110V / AC220V / DC24V
Numers of action
1~99
Set up
4 Segments and can set-up output.
In action

Automatic control is available to set time.
Alarm and indicator light is actived if time is over


Stop
3 cycles is can be setup when stop.


Intelligent Bag type Dust Collector
(Differential Pressure Controller)

Model

Avilable amount of solenoid valves

Model

Avilable amount of solenoid valves

LH-110-1

10

LH-110-5

50

LH-110-2

20

LH-110-6

60

LH-110-3

30

LH-110-7

70

LH-110-4

40

LH-110-8

80

Serial connection is not limited, 10 terminals is addable on each PLC, and so forth.

Ordering Code

LH
110
癒簞癒簞

LI HUI

Intelligent Bag type Duct Collector
(Differential Pressure Controller)

Amount of PLCs
1,2,3,4,5,6,7,8~ ~
