Multi Fuction Controller with LED Display
  Expandable

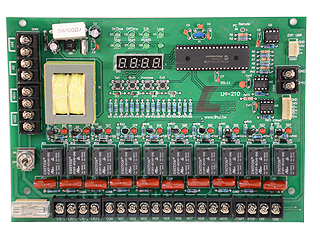

Digital PLC
Model

LH-210
Usage
Located on box of control panel or additionla external box
Voltage
AC110V / AC220V / DC24V
Frequency
50HZ / 60HZ
Diaplay
LED Displayer
Set up
Digital
Time
Set delay time by self
ON Time Range

0.01癒瓊99.99 sec
OFFTime Range

0.1癒瓊999.9 sec

Delay Cycle

0~999 times
Start
Startable at next of stopping point.
Remote Control
Connect with automation equipment.
Avaliable amount of Diaphragm Valves
10
Serail Connection
10 terminals is addable on each PLC, and so forth


Digital PLC

Model

Avaliable amount of Diaphragm Valves

Model

Avaliable amount of Diaphragm Valves

LH-210-1

10

LH-210-5

50

LH-210-2

20

LH-210-6

60

LH-210-3

30

LH-210-7

70

LH-210-4

40

LH-210-8

80

10 terminals is addable on each PLC, and so forth

Ordering Code

LH
210
癒簞癒簞

LI HUI

Digital PLC can connect with 10 solenoid valves.



Amount of PLC
1,2,3,4,5,6,7,8~ ~
